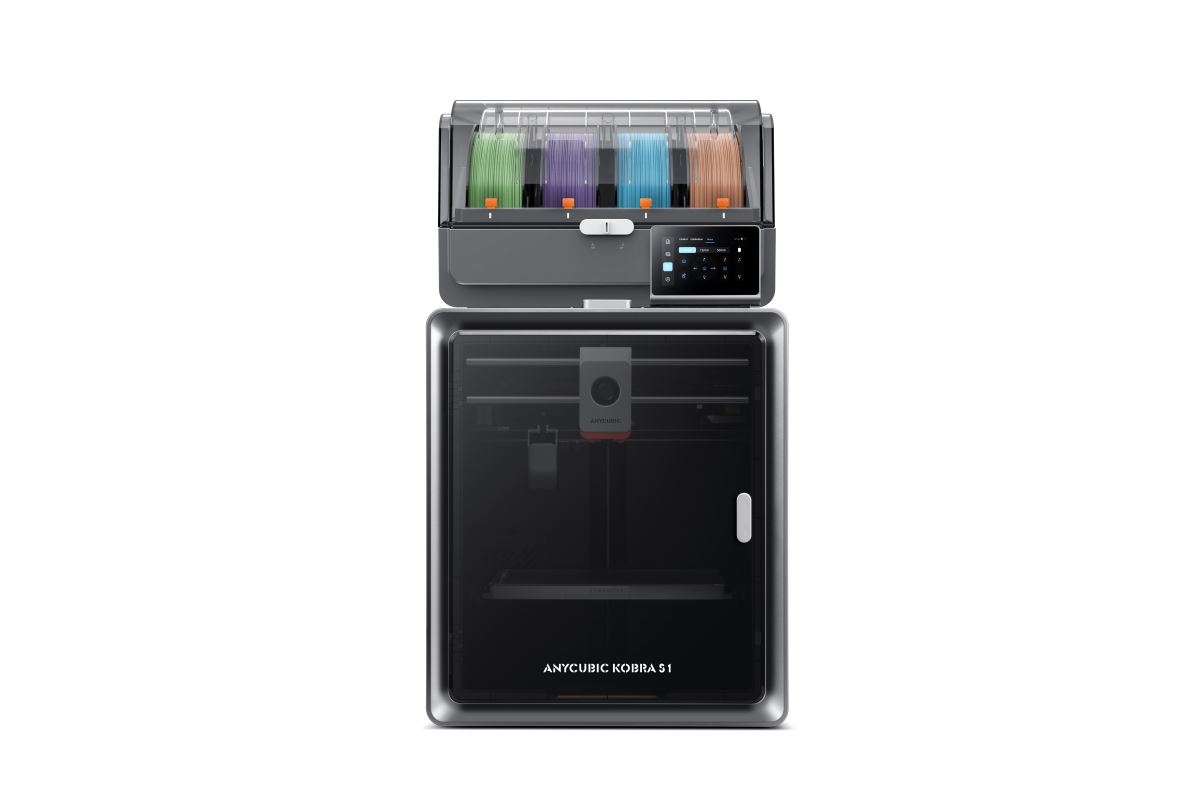

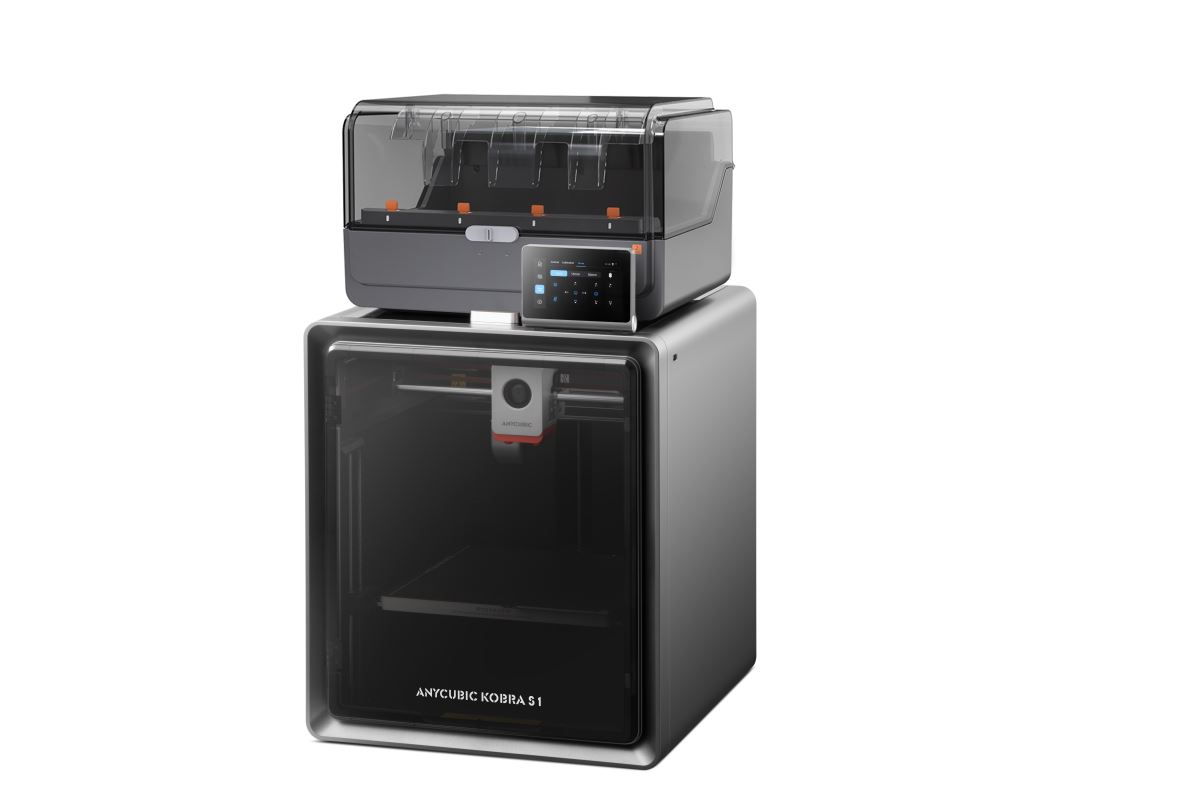

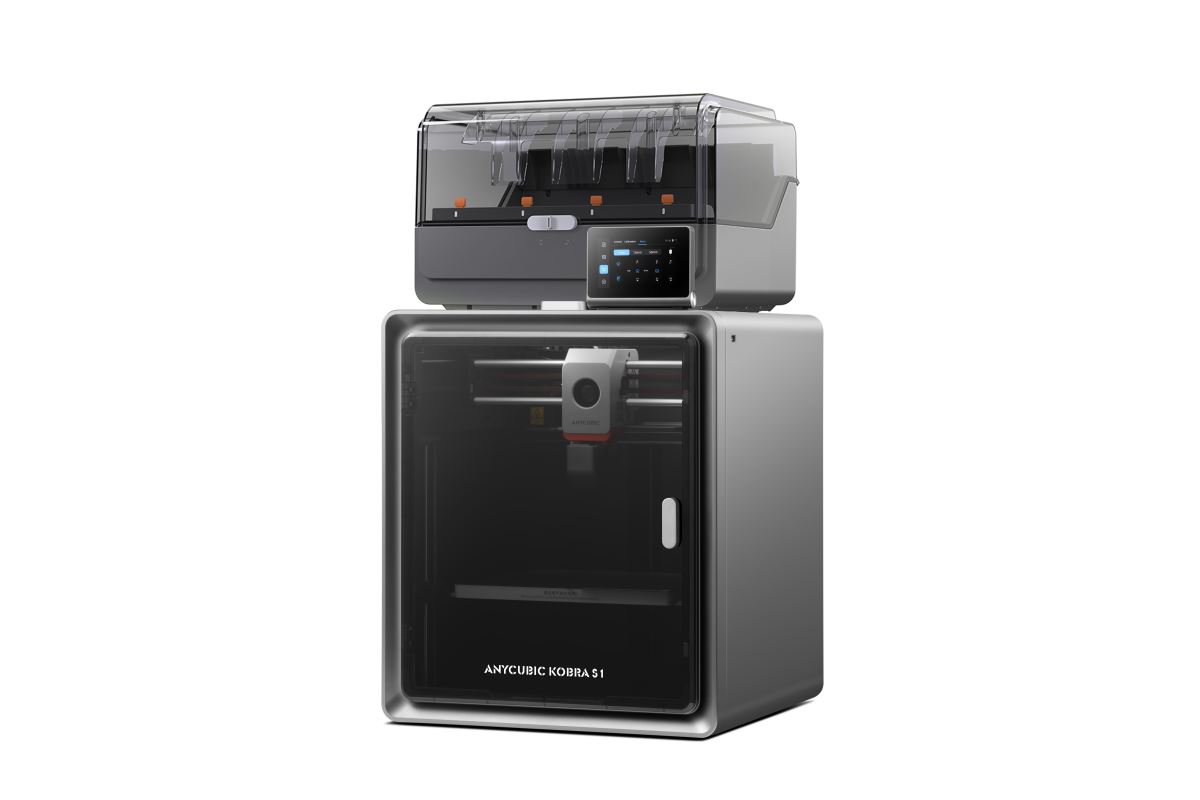

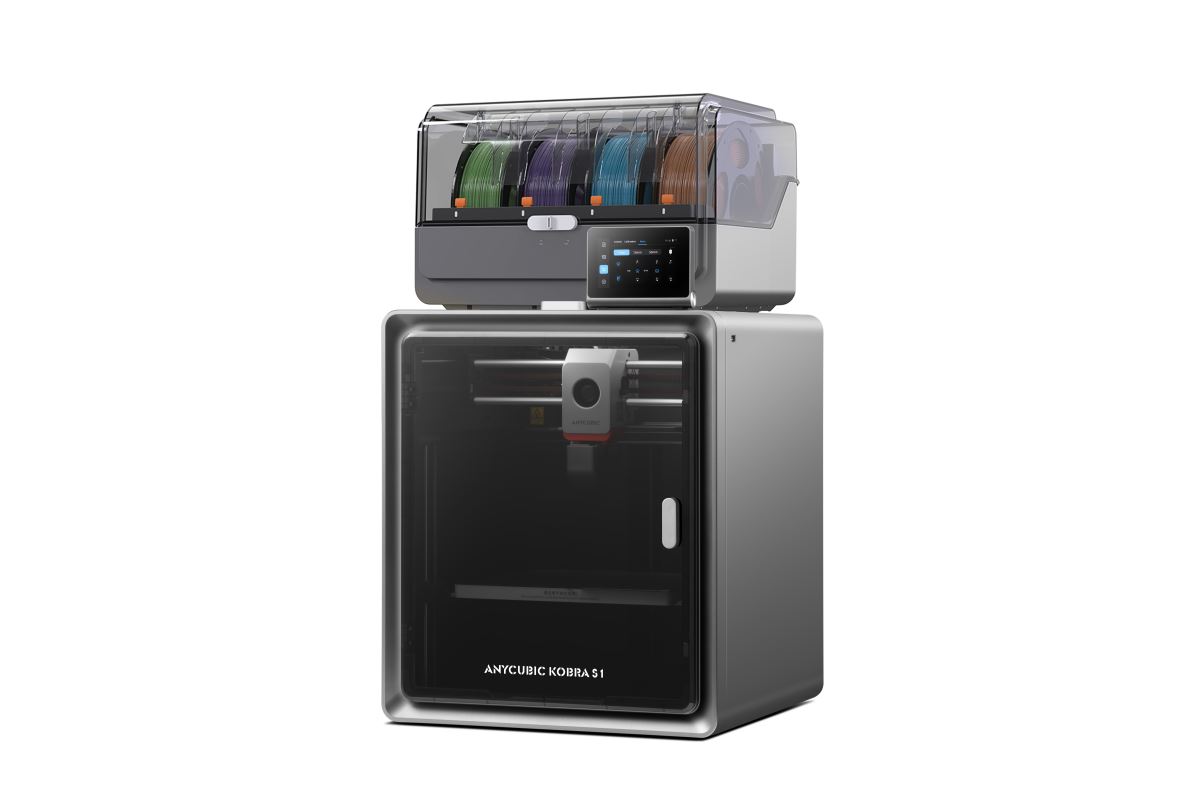

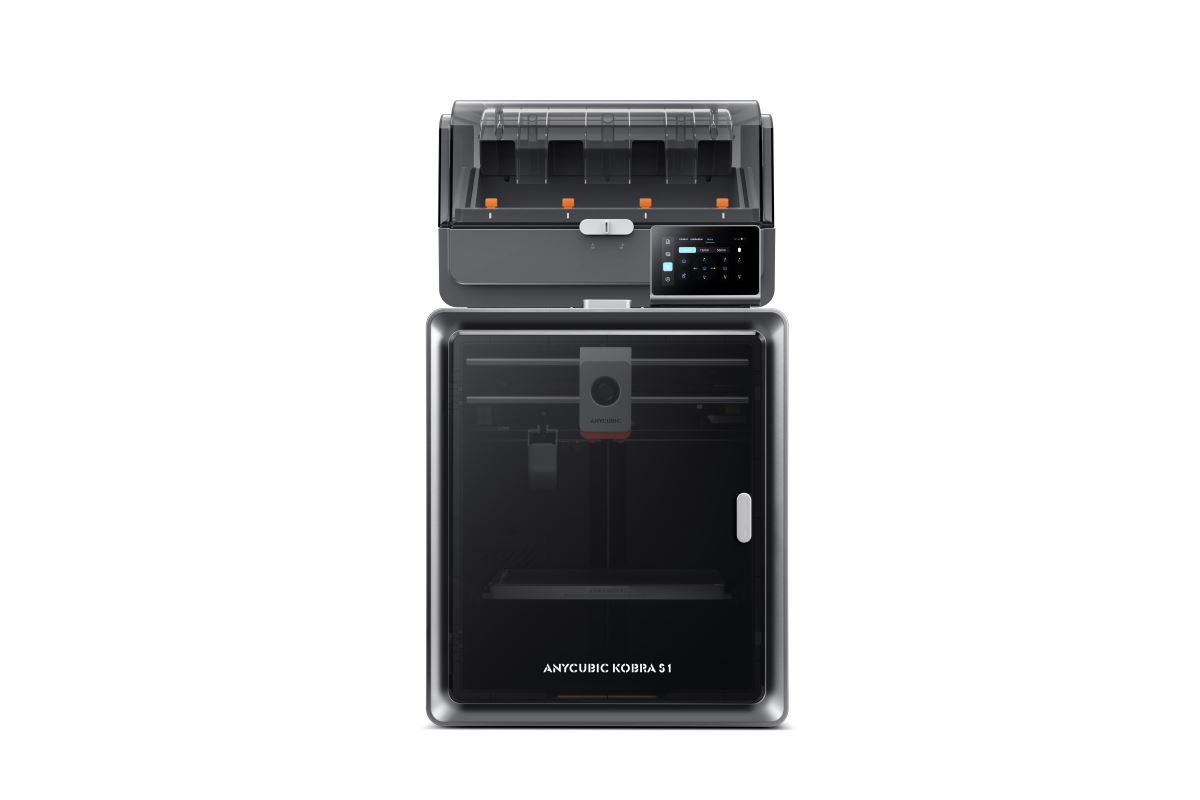

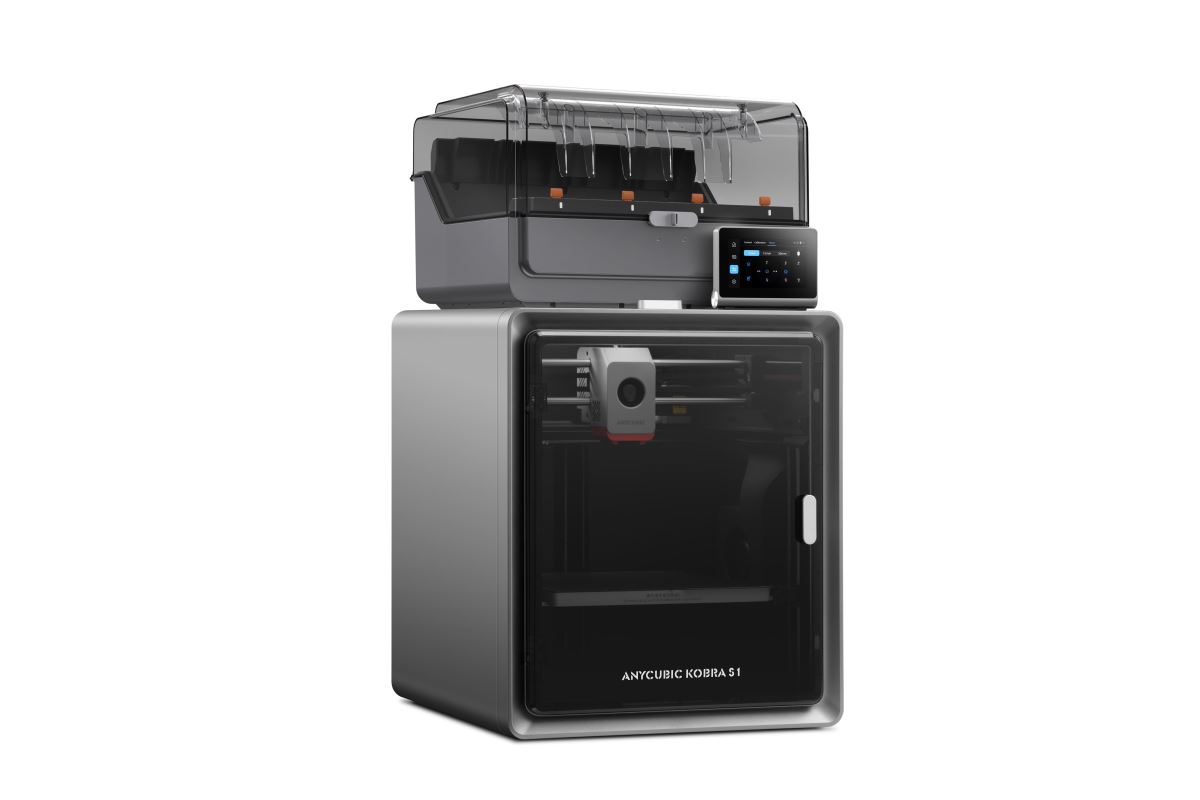

Anycubic FDM 3D printer Kobra S1 Ace 2 Pro Combo

The Anycubic Kobra S1 ACE 2 Pro Combo is a fully enclosed CoreXY FDM 3D printer supplied with the ACE 2 Pro multi-color system, which supports printing in up to 4 colors as standard and can be expanded to support up to 16 colors.
It combines high-speed printing, active filament drying during printing, automatic calibration, and advanced monitoring features.

• Fully enclosed CoreXY design
• Build volume of 250 × 250 × 250 mm
• ACE 2 Pro multi-color printing system included
• Standard support for 4 colors, expandable up to 16 colors
• Active filament drying during printing
• Filament drying temperature up to 65°C
• Hotend temperature up to 320°C
• Heated bed temperature up to 120°C
• Recommended print speed: 300 mm/s
• Maximum print speed: 600 mm/s
• Maximum acceleration: 20,000 mm/s2
• LeviQ 3.0 automatic bed leveling
• Automatic Z-offset compensation
• AI spaghetti detection
• Camera for remote monitoring and time-lapse videos
• Filament tangle and runout detection
• Quiet mode from 44 dB
• Control via printer interface, Anycubic App, slicer software, or USB
• Compatible with PLA, PETG, TPU, ABS, and ASA filaments
• Multi-Color Printing with ACE 2 Pro
• The new ACE 2 Pro system is included with the printer.

Successor to the popular S1 Combo
The new Anycubic Kobra S1 ACE 2 Pro Combo builds on the success of the original S1 Combo
while introducing the upgraded ACE 2 Pro system with support for up to 16 colors, active filament drying up to 65°C,
real-time temperature and humidity monitoring, and more reliable filament management.
Compared to the original S1 Combo, it also features an improved hotend with better compatibility for engineering-grade
materials and enhanced overall reliability during long and multi-color prints,
while retaining the fast enclosed CoreXY design with print speeds of up to 600 mm/s.


It supports printing with up to 4 filaments simultaneously as standard.
By connecting additional units, the system can be expanded to support up to 16 colors.
Compared to the previous ACE Pro, ACE 2 Pro introduces active humidity control, real-time temperature and humidity monitoring, and filament drying during printing.


Active Filament Drying and Protection
ACE 2 Pro can actively dry filament at temperatures up to 65°C.
The system uses active dehumidification, an enclosed chamber, and continuous temperature and humidity monitoring.
This helps keep filament in optimal condition during long print jobs.


CoreXY Design
The Kobra S1 uses an enclosed CoreXY motion system.
The X and Y axis motors are fixed within the frame, reducing moving mass and enabling high printing speeds while maintaining print accuracy.


High-Speed Printing
The recommended print speed is 300 mm/s.
The maximum print speed reaches 600 mm/s.
Maximum acceleration is 20,000 mm/s2.


320°C Hotend
The printer features a high-temperature hotend with a maximum temperature of 320°C.
It comes equipped with a 0.4 mm nozzle as standard.
0.6 mm and 0.8 mm nozzles are also supported.


LeviQ 3.0 Automatic Calibration
The LeviQ 3.0 system provides automatic bed leveling.
It also includes automatic Z-offset compensation, reducing the need for manual adjustments during print preparation.


Intelligent Monitoring The printer supports:

• AI spaghetti detection
• Filament tangle detection
• Filament runout detection
• Automatic print recovery after power loss
• Skipping defective objects when printing multiple models
• Camera monitoring with time-lapse recording support

Quiet Operation
≤46 dB in standard mode
≤44 dB in quiet mode
The ACE 2 Pro uses four independent brushless motors for filament feeding and a design focused on reducing vibration and noise.


TECHNICAL SPECIFICATIONS
Model: Anycubic Kobra S1 ACE 2 Pro Combo
Printing technology: FDM
Design: Enclosed CoreXY
Build volume: 250 × 250 × 250 mm
Multi-color printing: 4 colors standard, expandable up to 16 colors
Print speed: Recommended 300 mm/s, maximum 600 mm/s
Acceleration: Recommended 10,000 mm/s2, maximum 20,000 mm/s2
Hotend temperature: Up to 320°C
Heated bed temperature: Up to 120°C
Nozzle: 0.4 mm standard, supports 0.6 mm and 0.8 mm nozzles
Bed leveling: LeviQ 3.0 Auto Leveling, automatic Z-offset compensation
Display: 4.3" capacitive touchscreen
Camera: HD camera with up to 480p resolution
Noise level: ≤46 dB standard mode, ≤44 dB quiet mode
Connectivity: Direct printer control, slicing software, Anycubic App, USB (printing only)
Supported materials: PLA, PETG, TPU (95A), ABS, ASA

Printer dimensions and weight: 400 × 410 × 490 mm / 18 kg
ACE 2 Pro dimensions and weight: 368 × 291.5 × 236.5 mm / 3.7 kg
Package dimensions and weight: 490 × 484 × 593 mm / 25 kg


PACKAGE CONTENTS

• Anycubic Kobra S1
• ACE 2 Pro
• Accessories
